MIL-DTL-22442/24C(AS)

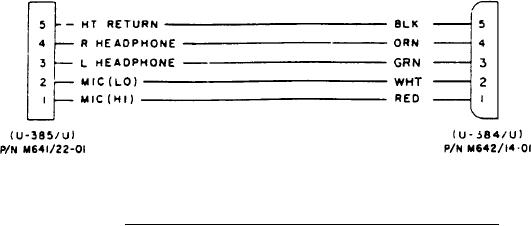

FIGURE 2. Cable Assembly CX-13017/AR Schematic Diagram.
APPLICABLE DOCUMENTS:
MIL-C-10392 - Cord Electrical (Audio, Miniature)
MIL-J-64l/22
-
Jacks, Telephone, U-385
MIL-P-642/l4
-
Plugs, Telephone, (Type U-384/U) 5 Conductor, Single
REQUIREMENTS:
*1. The cable (cord) shall be in accordance with MIL-C-10392 Type WM-59A/U or
equal.
2. The weight of the cable assembly shall be in accordance with Table I.
3. The stay cord shall be firmly attached to the connectors.
4. The DC resistance shall be less than 2 ohms between the following contacts when
tested with an ohmmeter.
(a) Contact 5 of P/N M64l/22-0l (U-385/U) and contact 5 of P/N M642/l4-0l (U-
384/U).
(b) Contact 4 of P/N M64l/22-0l (U-385/U) and contact 4 of P/N M642/l4-0l (U-
384/U).
(c) Contact 3 of P/N M64l/22-0l (U-385,'U) and contact 3 of P/N M64l/l4-0l (U-
384/U).
(d) Contact 2 of P/N M64l/22-0l (U-385/U) and contact 2 of P/N M64l/l4-0l (U-
384/U).
2
