MIL-DTL-22442/31B(AS)

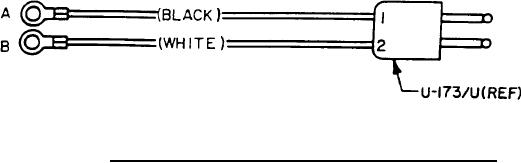

FIGURE 2. Cable assembly P/N M22442/31-l Schematic Diagram.
APPLICABLE DOCUMENTS:
MIL-C-55668
-
Cord, Electrical; Audio Subminiature (Retractile and Straight)
MIL-C-l0392
-
Cord, Electrical (Audio Miniature)
APPLICABLE DRAWINGS
AIR FORCE
57B12662
-
Connector, Plug Electrical U-173/U
57B12664
-
Tip - Electrical, Plug Connector
REQUIREMENTS:
*1. The cable (cord) shall be in accordance with requirements of MIL-C-10392 Type
WM-59A/U, or MIL-C-55668 Type III 2 conductor or equal
2. The stay cord shall be firmly attached to the connector.
3. The stay cord shall be .250 longer than the conductors.
4. The ring terminal shall be brass with nickel finish, AMP P/N 31518 or equivalent (as
approved by the qualifying activity).
5. The DC resistance shall be less than 2 ohms between the following contacts.
(a) Contact A and contact 1 of U-l73/U.
(b) Contact B and contact 2 of U-l73/U.
6. The cable assembly shall be tested in accordance with the tests listed in Table I.
7. The weight of the cable assembly shall not be greater than l ounce.
