MIL-DTL-22442/36B

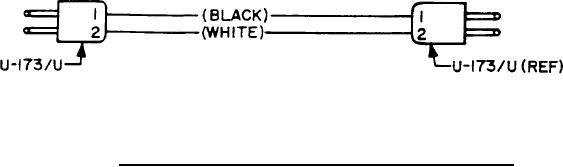

FIGURE 2. Cable assembly P/N M22442/36-X Schematic Diagram.
APPLICABLE DOCUMENTS:
MIL-C-55668
-
Cord, Electrical, Audio Subminiature (Retractile and Straight)
MIL-C-l0392
-
Cord, Electrical (Audio Miniature)
APPLICABLE DRAWINGS
AIR FORCE
57B12662
-
Connector, Plug Electrical U-173/U
57Bl2664
-
Tip - Electrical, Plug Connector
REQUIREMENTS:
* 1. The cable (cord) shall be in accordance with requirements of MIL-C-10392 Type WM-
27A/U, or MIL-C-55668 Type III 2 conductor or equal.
2. The stay cord shall be firmly attached to the connectors.
3. The DC resistance shall be less than 2 ohms between the following contacts:
(a) Contact 1 of U-173/U and contact 1 of U-l73/U.
(b) Contact 2 of U-173/U and contact 2 of U-173/U.
4. The cable assembly shall be tested in accordance with the tests listed in Table II.
5. The weight of the cable assemblies shall not be greater than 1 ounce.
6. The U-173/U connector shall be made in accordance with Air Force drawings 57B12662
and 57B12664.
2
