MIL-DTL-22442/38B

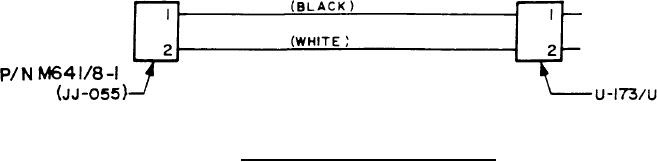

FIGURE 2. Cable assembly Schematic Diagram.
APPLICABLE DOCUMENTS:
MIL-C-55668
-
Cord, Electrical, Audio Subminiature (Retractile and Straight)
MIL-C-l0392
-
Cord, Electrical (Audio, Miniature)
MIL-J-641/8
-
Jacks, Telephone, Type JJ-055
APPLICABLE DRAWINGS
AIR FORCE
57B12662
-
Connector, Plug Electrical U-l73/U
57Bl2664
-
Tip - Electrical, Plug Connector
REQUIREMENTS:
* 1. The cable (cord) shall be in accordance with the requirements of MIL-C-10392 Type
WM-27A/U, or MIL-C-55668 Type III 2 conductor or equal.
2. The staycord shall be firmly attached to the connectors.
3. The DC resistance shall be less than 2 ohms between the following contacts:
(a). Contact l of PIN M641/8-l (JJ-055) and contact l of U-173/U.
(b). Contact 2 of PIN M641/8-l (JJ-055) and contact 2 of U-173/U.
4. The cable assembly shall be tested in accordance with the tests listed in Table I.
5. The weight of the cable assembly shall not be greater than 2 ounces.
6. The U-173/U connector shall be made in accordance with Air Force drawings 57B12662
and 57B12664.
2
