MIL-DTL-22442/29B(AS)

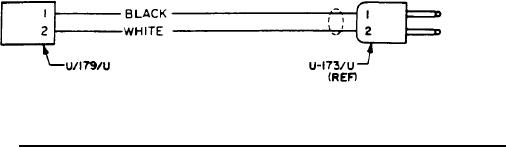

FIGURE 2. Cable assembly CX-13154/A schematic diagram P/N M22442/29-1.
APPLICABLE DOCUMENTS:
MIL-C-55668
-
Cord, Electrical, Audio Subminiature (Retractile and Straight)
MIL-C-l0392
-
Cord, Electrical (Audio, Miniature)
APPLICABLE DRAWINGS:
AIR FORCE
57Bl662
-
Connector, Plug Electrical U-l72/U
57Bl664
-
Tip - Electrical, Plug Connector
REQUIREMENTS:
*1. The cable (cord) shall be in accordance with the requirements of MIL-C-10392 Type
WM-27A/U, or MIL-C-55668 Type III 2 conductor or equal
2. The stay cord shall be firmly attached to the connectors.
3. The DC resistance shall be less than 2 ohms between the following contacts:
(a) Contact l of U-l79A/U and contact l of U-l73/U.
(b) Contact 2 of U-l79A/U and contact 2 of U-l73/U.
4. The cable assembly shall be tested in accordance with the tests listed in Table I.
5. The weight of the cable assembly shall not be greater than l ounce.
6. The U-173/U connector shall be made in accordance with Air Force drawings 57Bl662
and 57Bl664.
2
