MIL-DTL-22442/33B

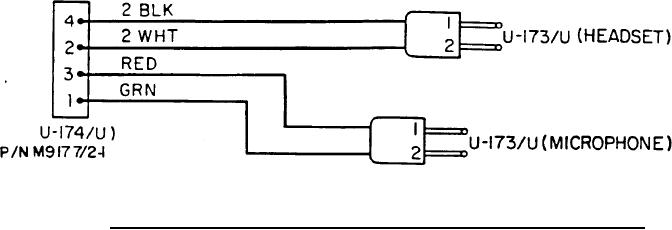

FIGURE 2. Cable assembly CX-4707C/AIC schematic diagram. P/N M22442/33-4707.
APPLICABLE DOCUMENTS:
MIL-C-9l77/2
-
Connector, Audio Airborne, Plug, Miniature, 4 Contact
APPLICABLE DRAWINGS:
AIR FORCE
57Bl2662
-
Connector, Plug Electrical U-l73/U
57Bl2664
-
Tip - Electrical, Plug Connector
REQUIREMENTS:
l. The cable (cord) shall be in accordance with M22442/35-1 except that the shield shall be
omitted.
2. The weight of the cable assembly shall not be greater than 5 ounces.
3. The stay cord shall be firmly attached to the connectors.
4. The "X" dimension shall be 42.25 +3 -0.5 before coiling.
5. The DC resistance shall be less than 2 ohms between the following contacts:
(a) Contact 4 of P/N M9177/2-l (U-174/U) and contact 1 of U-173/U.
(b) Contact 2 of P/N M9177/2-1 (U-l74/U) and contact 2 of U-l73/U.
(c) Contact 3 of P/N M9177/2-1 (U-174/U) and contact 1 of U-l73/U.
(d)
Contact l of P/N M9177/2-l (U-l74/U) and contact 2 of U-173/U.
6. The U-l73/U connector shall be made in accordance with Air force drawings 57Bl2662
and 57Bl2664.
2
