INCH-POUND
MIL-DTL-22442/12C(AS)
5 January 1998
SUPERSEDING
MIL-C-22442/12B(AS)
2 September 1988
DETAIL SPECIFICATION SHEET
CABLE ASSEMBLY, AIRCRAFT AUDIO, CX-4622/AR
This specification sheet is approved for use by the Naval Air Systems Command, Department of
the Navy, and is available for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and
the issue of MIL-DTL-22442 listed in the issue of the Department of Defense Index of Specifications and
Standards (DoDISS) specified in the solicitation.

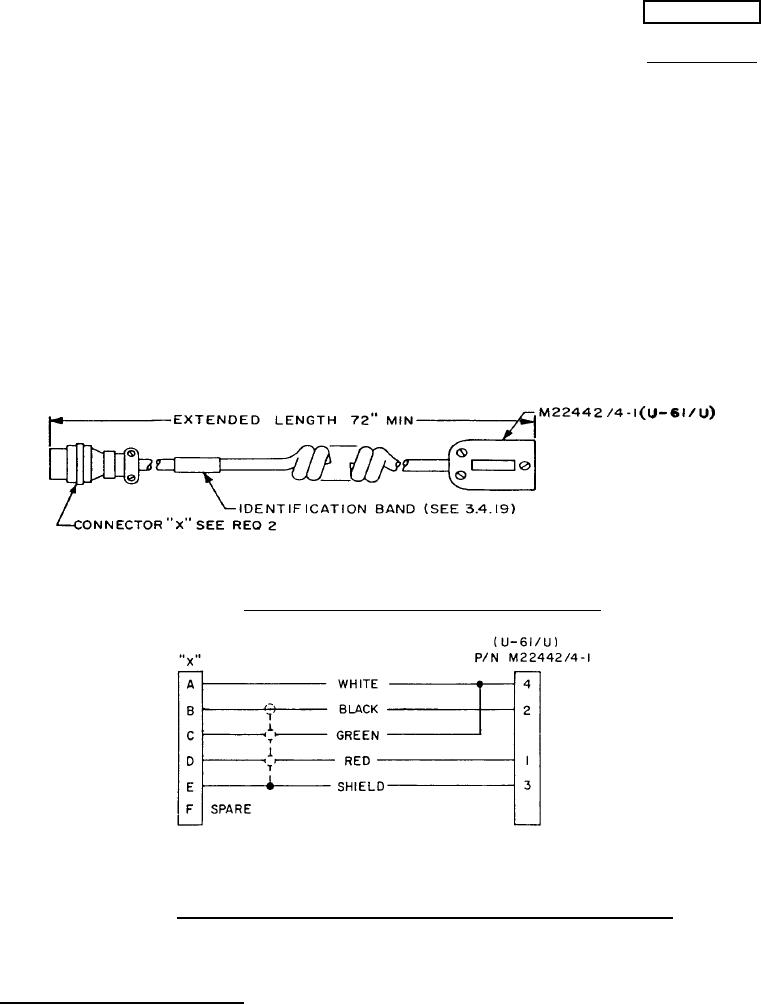

FIGURE 1. Cable Assembly CX-4622/AR P/ N M22442/12-1.
FIGURE 2. Cable Assembly CX-4622/AR P/M M2202/12-1 Schematic Diagram.
AMSC N/A
1 of 3
FSC 5995
DISTRIBUTION STATEMENT A: Approved for public release; distribution is unlimited.
