MIL-DTL-22442/32C

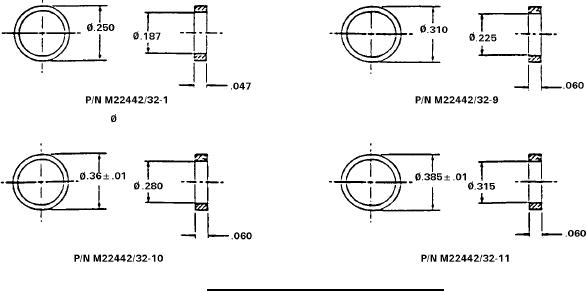

FIGURE 1. Clamp-electrical plug connector.
REQUIREMENTS:
*1. The clamp shall be brass in accordance with ASTM-B16, Temper H02 or equivalent
(as approved by the qualifying activity).
2. The clamp shall be cadmium plated in accordance with SAE-AMS-QQ-P-416, Class l,
Type II.
NOTES:
l. All dimensions are in inches.
2. Tolerances are ±.005 for inches and ± 1 degree for angles.
3. Remove all burrs and sharp edges.
4. The item described in this specification sheet is the same as U.S. Air Force Drawing
57Al2700 and U.S. Army Electronic Command Drawing SM-B-430255.
