MIL-DTL-22442/32C

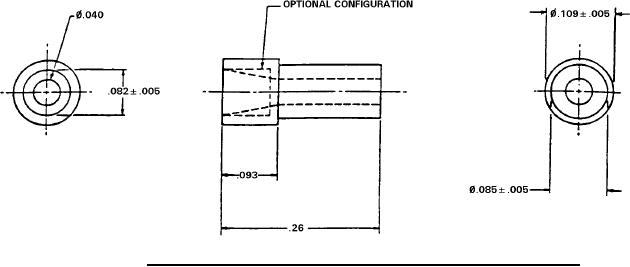

FIGURE 2. Contact-electrical cord assembly beveled PIN M22442/32-2.
REQUIREMENTS:
l. The contact shall be brass in accordance with ASTM-B16, Temper H02 or equivalent
(as approved by the qualifying activity).
2. The contact shall be finished 32√ in accordance with ASME B46.1.
3. The contact shall be silver plated in accordance with ASTM-B700 Grade B .0003
thick solderable. Optional plating may be M-262 cadmium plate in accordance with MIL-
F-l4072 or nickel plate.
NOTES:
l. All dimensions are in inches.
2. Tolerances are ±.015 for two place decimals and ±.005 for three place decimals.
3. Remove all burrs and sharp edges.
4. The item described in this specification sheet is the same as U.S. Air Force Drawing
55B12776.
4
